The Revelate Spinelock™ seat bag is the most stable, low-profile mounted, feature-loaded, waterproof seat bag available.

It integrates user tested and approved features like a one-way air purge valve, rear light slots, loop and bungee deck, and an external plastic bottom with a new patented attachment system. Stability was the driving element in the design process. If you want something you can pack and forget, the Spinelock is your seat bag.

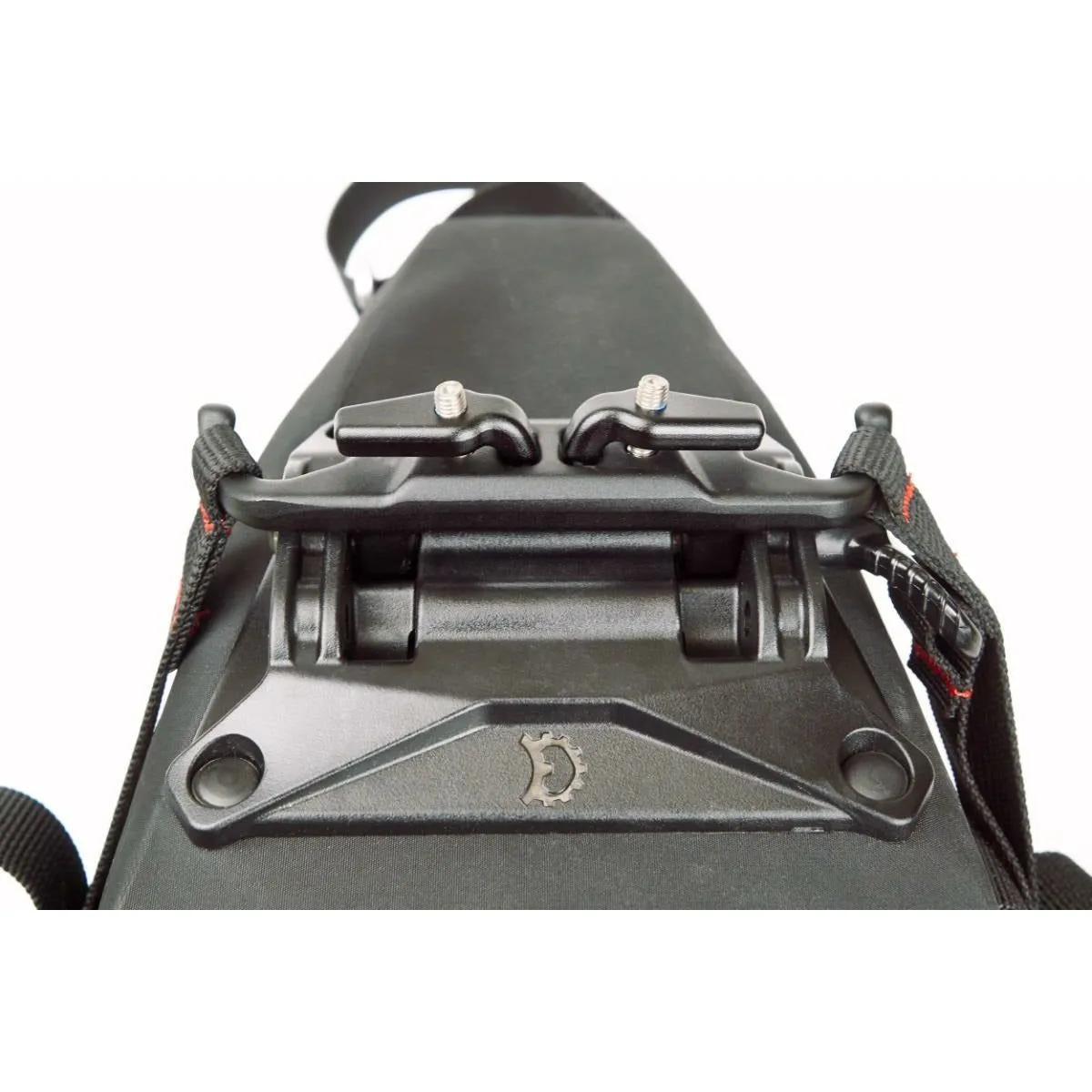

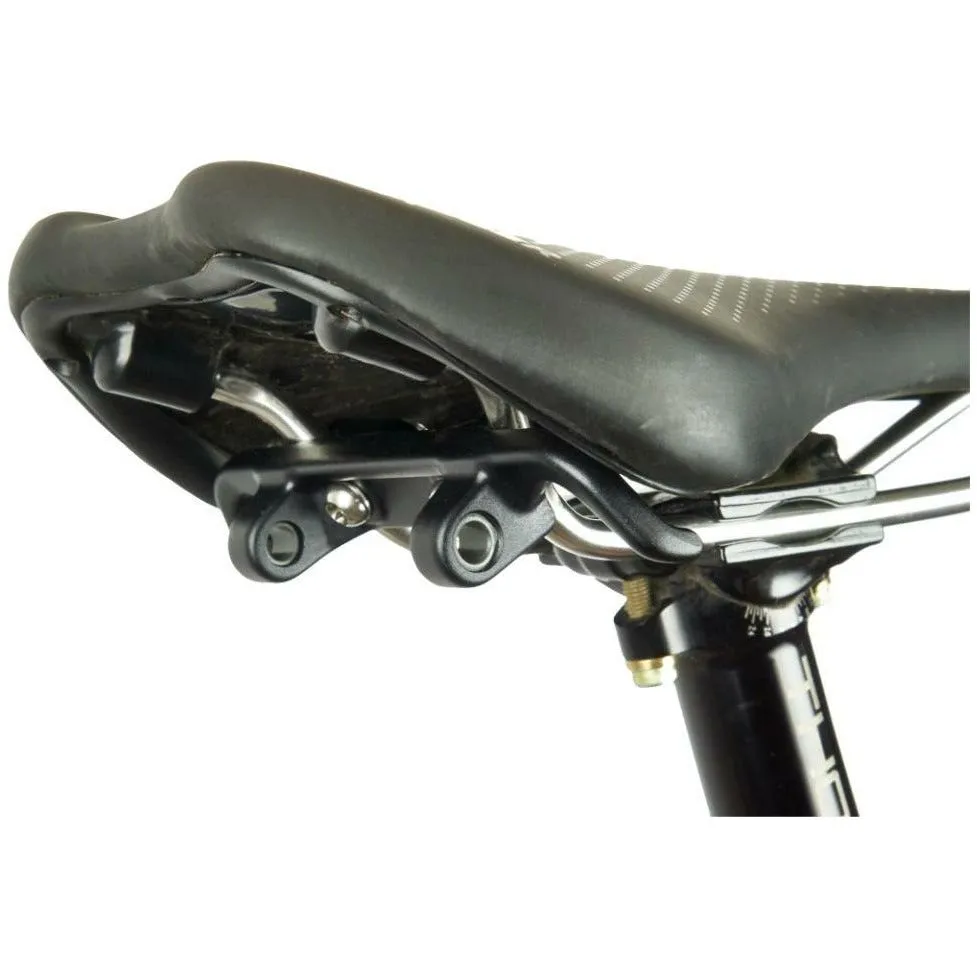

Its stability system consists of three components: the saddle clamp, seat bag mounted "Spine" baseplate, and pin. A low profile, high strength, forged aluminum clamp works in combination with precision IGUS bushings to form the pin interface. Twin forged upper arms, fastened by Torx-25 bolts, rotate into position above the saddle rails for easy mounting.

FEATURES:

• The innovative Spinelock stability system completely eliminates side-to-side sway
• Waterproof construction
• Two mounting positions to accommodate seatpost setback and saddle adjustments
• A low profile, high strength, forged aluminum clamp works in combination with precision IGUS bushings to form a quick-release pin interface making bag removal a cinch.
• Quick release bag from bike
• Internal HDPE plastic structure

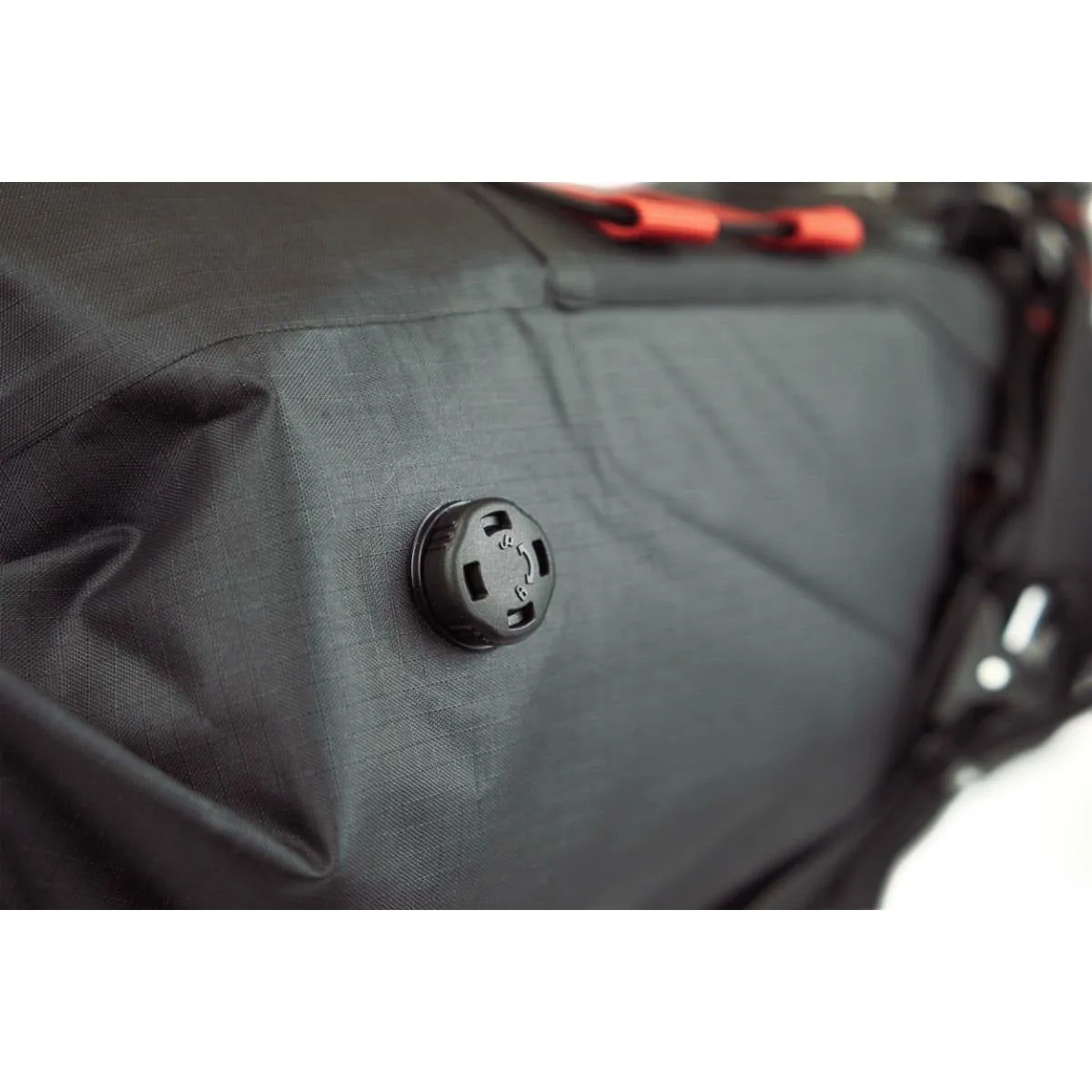

• One way, low profile, air purge valve
• Carbon seatpost friendly
• Hypalon slots for a rear light
• Top mounted external webbing and bungee for additional storage
• Protective external plastic bottom frame sheet
• Active cam buckles prevent side straps from slipping on rough terrain

Important information on use and fit:

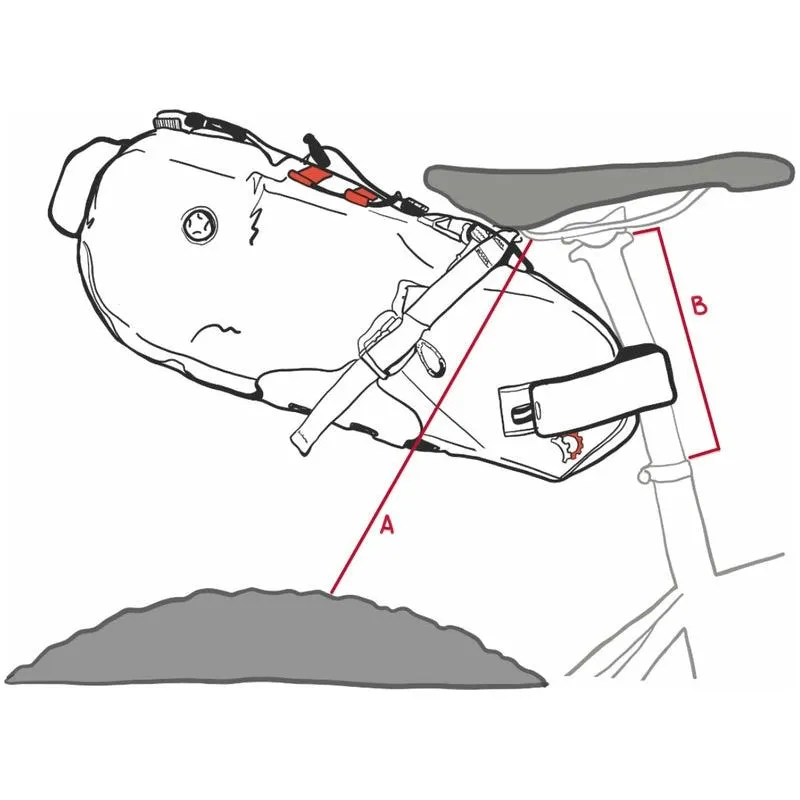

• Minimum 8 in / 20 cm tire clearance (Shown as A)
• Minimum exposed seat post 6.5 in / 16.4 cm (Shown as B)
• Traditional saddle-style rails are required.
• Does not work with most Brooks saddles.
• Not compatible with carbon fiber saddle rails
• Only compatible with traditional style saddle rails and is not compatible with most models of Brooks saddles including (B17, B66, B67, Flyer, and similar).
• This product is not designed for use with dropper seatposts.
• This bag is for carrying soft, pliable objects. Sufficiently pad any hard edge objects like cookware to prevent premature wear.
• It is mandatory to check tire clearance prior to use, especially with full suspension bikes. Bag contact with a tire can cause a bad wreck and ruin your day. Tire damage to the bag is not covered by warranty.
• A Torx-25 wrench is needed for installation. You likely already have one on your multi-tool!

SPECS:

• Weight: 22.5 oz / 638 g
• Volume: 610 in³ / 10 L
• Materials: 210 Denier Ripstop Nylon with dual coated TPU, urethane-based Hypalon reinforcement fabric, UV-stabilized, impact-resistant nylon resin, forged aluminum. Imported.
